Setup QC Criteria / Approve Setup
-Check the archform for accuracy.
-Check that the occlusal plane has been leveled.
-We start with a view from the terminal molars looking towards the canines. We inspect that the marginal ridges line up from the molars, bi-cuspids and cuspids on both sides of the arch.
4.For Aligner Review IPR RECOMMENDATIONS and Attachments

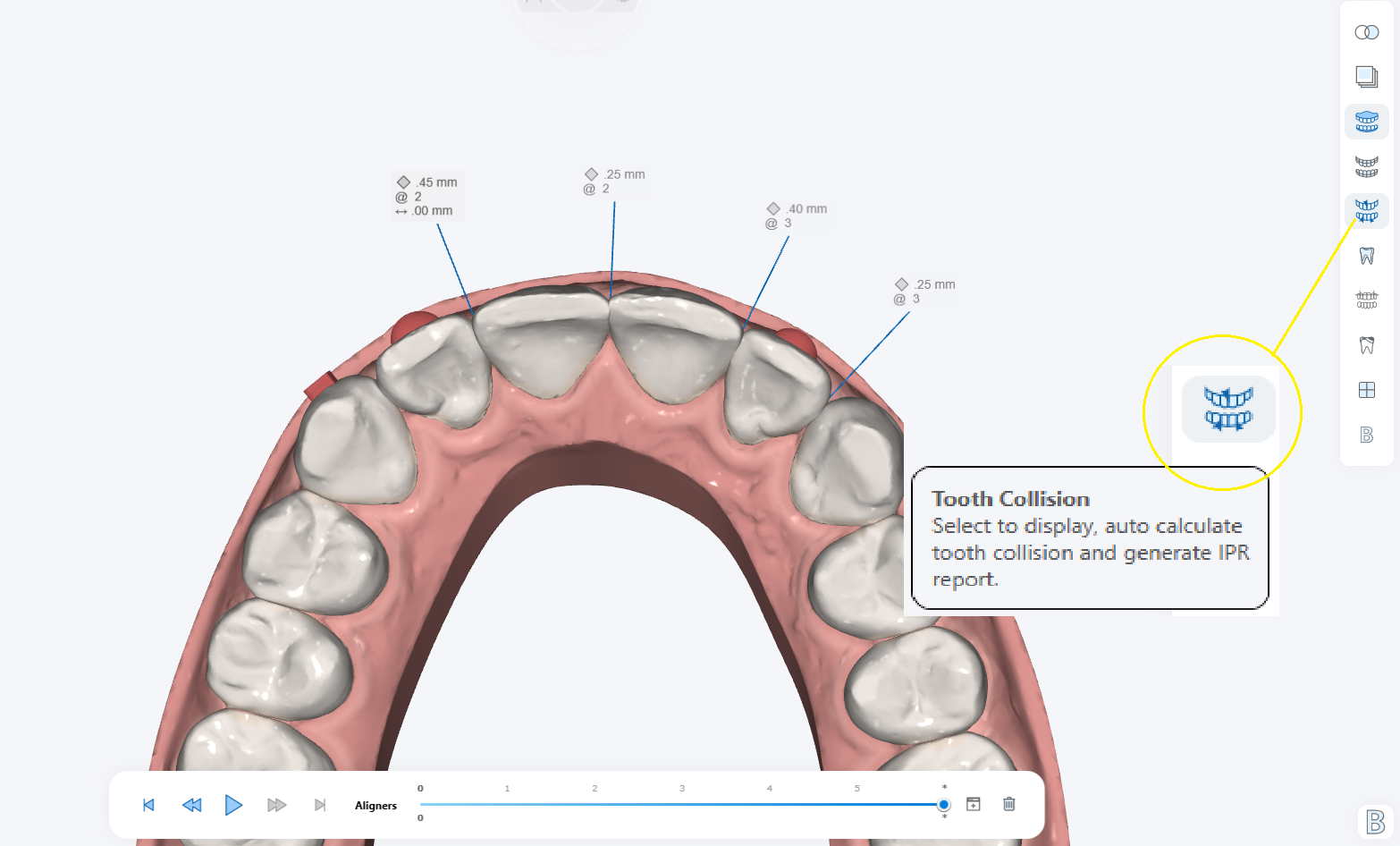

-Review that the IPR recommended has eliminated all collisions.

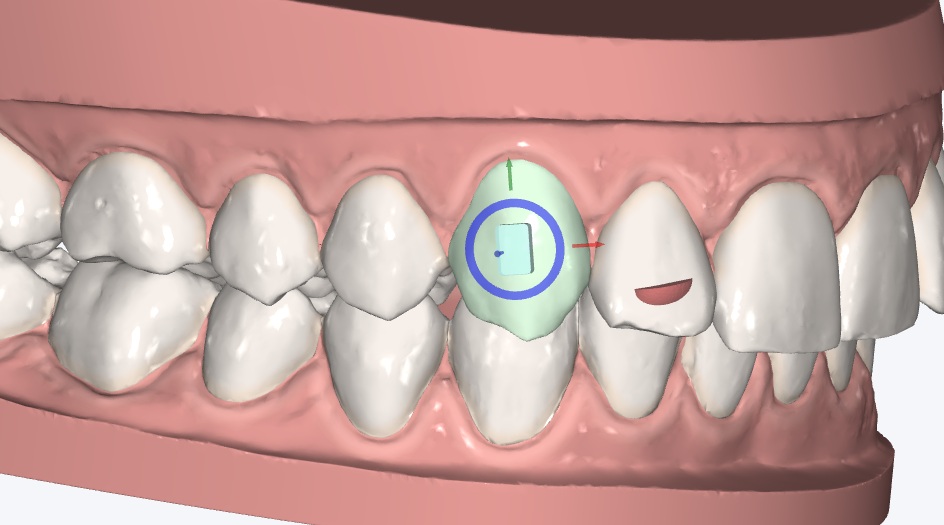

-Review Attachment allocation for rotation, extrusion and retention.
5.For INdirect Bonding Review Bracket Heights
-Review that the bracket heights are acceptable. .
6.Approving the Setup
-Once you are satisfied with the setup, Click Approve button to open approval dialog window.
-Approval dialog window will automatically appear with your user name. To complete the process, enter your password and Click Sign.
7.Requesting Setup Revisions
-To request for an Arcad technician to perform a revision to the setup, Click on Revision button
-Enter revision notes in the revision comments box.
-Next, Click Send Comments button to open revision request sign dialog window.
-Revision dialog window will automatically appear with your user name. To complete the revision request, enter your password and Click Sign.
