Interactive Options

  1. Arch Selection and Transparency tool

Slide Upper Arch  bar to desired transparency state.

Slide Upper Arch bar to desired transparency state.

Slide Lower Arch  bar to desired transparency state.

Slide Lower Arch bar to desired transparency state.

Slide Attachment  bar to desired transparency state. Note: Slide all the way to the left for 100% transparency.

Slide Attachment bar to desired transparency state. Note: Slide all the way to the left for 100% transparency.



 2. Patient images

-Images loaded on the portal at time of order creation will automatically display in Arcad SmileStudio software.

Patient Images 3.PNG


3. Model With Base Selection

Select GUM tool to view model with base. Note: Base Morphing calculation will automatically take place the moment you select to show base.

show gum 2.png


 4. VIEW / HIDE arch form / wire

Select Arch form tool to show arch form.

Note: Archform can be modified with the arch modify tool.

modify arch.PNG
arch form 2.png


 5. view / hide tooth collision / ipr report

ipr 2.png

Select tooth collision tool to view or hide IPR report. Note: By default tool collision tool is active. Make sure to keep active when reviewing IPR report and when mashow Wire box to show or hide wire



 6. HOW to superimpose pre-treatment model

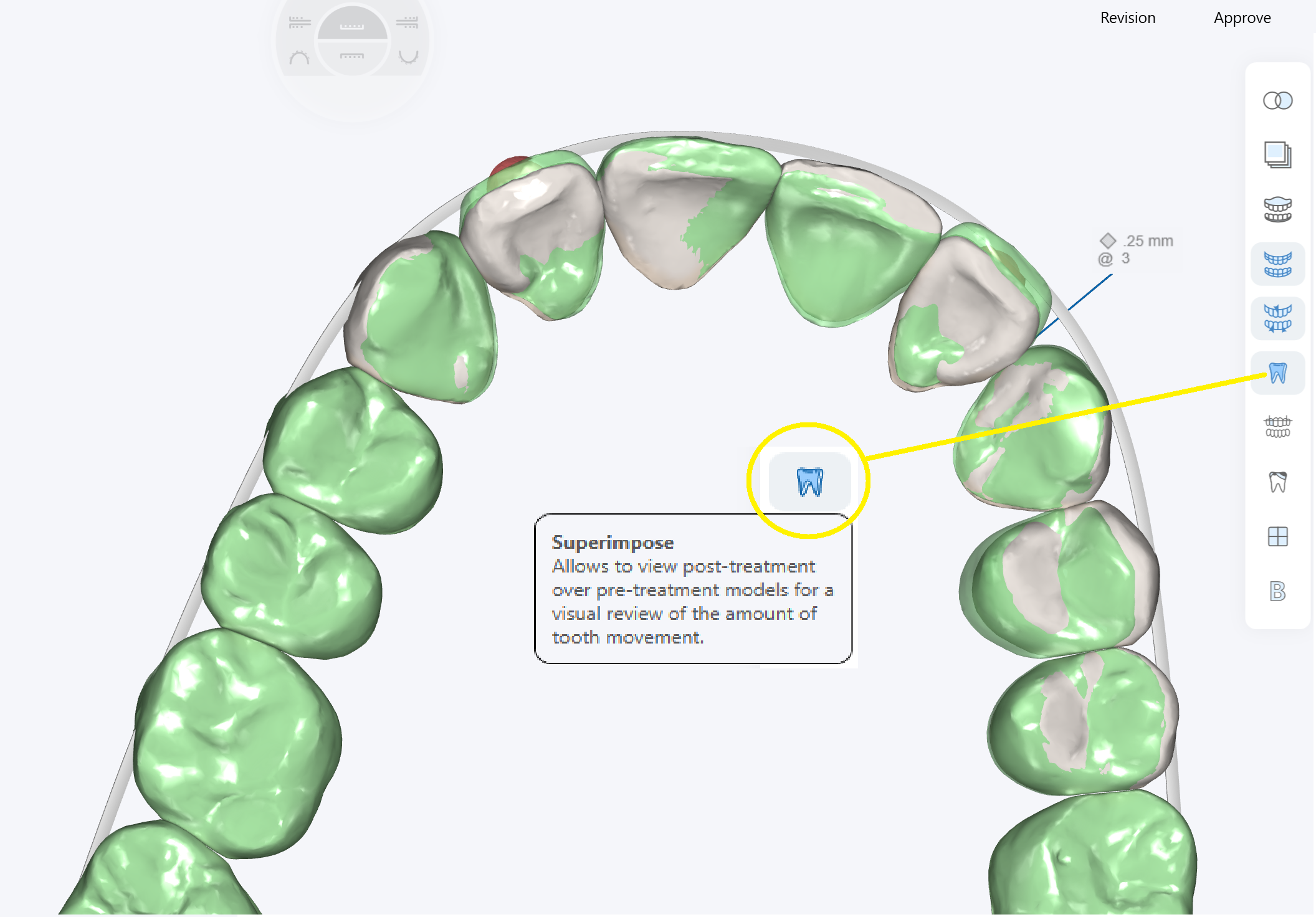

Select Superimpose tool to view or hide pre-treatment model over post-treatment model.


Note:   CLICK  Play button or Drag the pre to post slider bar to show the movement between the two models

Note: CLICK Play button or Drag the pre to post slider bar to show the movement between the two models

superimpose 2.png


 7. Activate Tooth Symmetry Mode

Note: Planes will travel as you move the teeth directly with tooth manipulation tool or controlled tooth movement tools.

Note: Planes will travel as you move the teeth directly with tooth manipulation tool or controlled tooth movement tools.

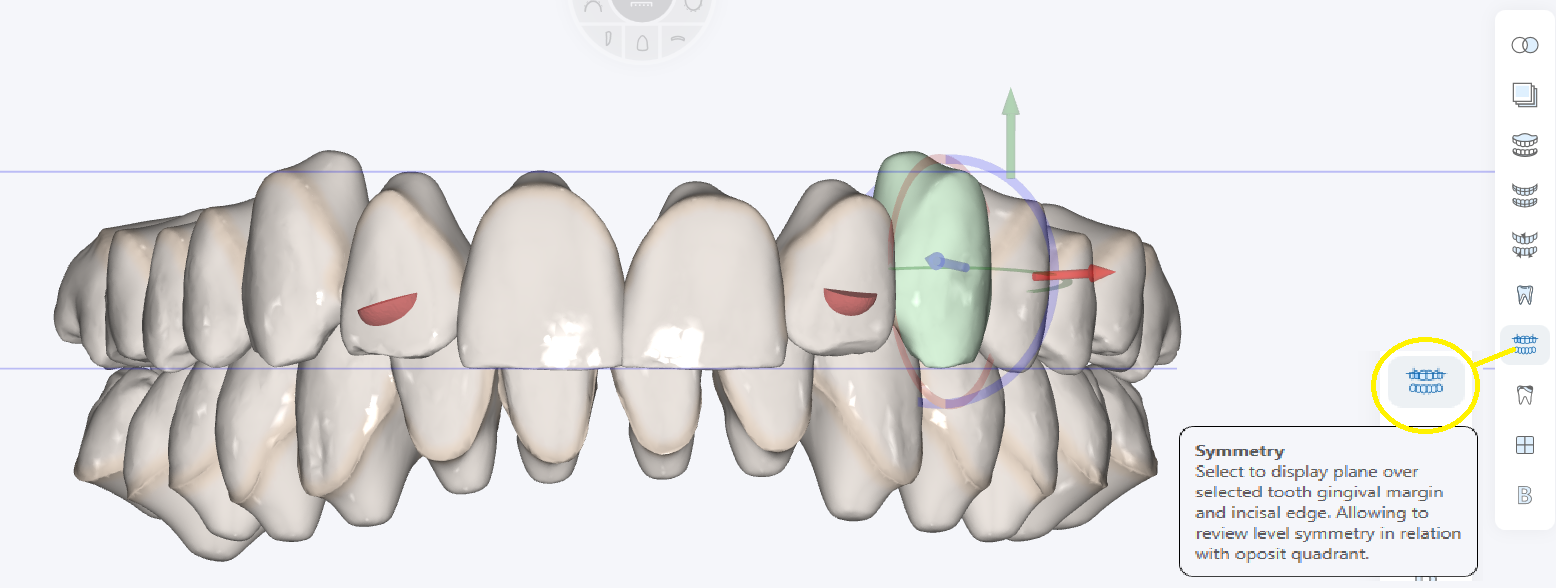

Select Tooth Symmetry tool to activate Tooth Symmetry Mode. Then, right click on a tooth and two planes will display at both the gingival margin and occlusal edge of selected tooth. Which allows you to view if the select tooth is leveled to the opposite quadrant tooth.



 8. Calculate Occlusogram

occlusalgram 2.png

Select Occlusogram tool to initiate the calculation of Occlusion contact points. Note: Depth chart is measured in mm.
